TGB

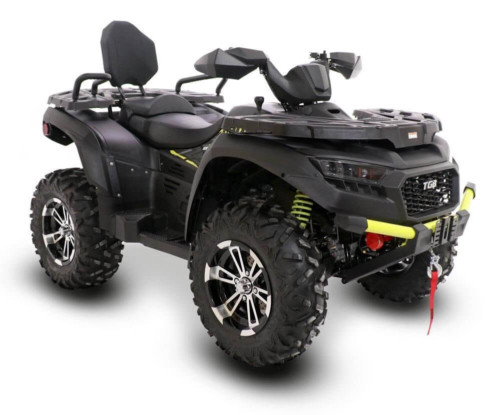

Blade 1000 LTX

The Blade 1000 LTX is the latest generation of TGB`s flagship machine. The new LTX has had a facelift, with new hi-lite LED front lights seated in a more aggressive front body panel. The new front lights also incorporate LED strip indicators.

The engine on the new LTX features re-profiled camshafts specifically designed to increase bottom end torque and give a more linear power curve.

This new upgrade gives the rider more usable power in all riding conditions. Whether you are putting the machine through its paces off road or touring the countryside the Blade 1000 LTX is one of the best on the market.

See The Blade

In Action

View the Blade 1000LTX Quad Bike in action. Over 50 years experience in producing market leading products!

Top Features

Spec List

Bore & Stroke92 x 75.0 mm
Capacity997cc
ClutchAutomatic - CVT
Compression Ratio10.2
CoolingLiquid Cooled
Drive Type2/4 Wheel Drive Selectable
Dry Weight Mass380 kg
Electric Power SteeringYes
Electrical Outlet ConnectorDC 12V 10A 120W
Engine Braking System (SBS)Standard
Engine Type4-Stroke V-Twin
Euro 4Yes
Final DriveShaft
Front Brakes230mm Dual Hydraulic Disc
Front DifferentialElectric Lock
Front Rack (Max Loading)30 kg
Front Shock AbsorbersEVO Hydraulic 220mm Travel
Front SuspensionIndependant Double A Arm
Front Tyre SizeAT26 x 8-14
Front Wheel Size14"
Fuel SystemEFI - Electronic Fuel Injection
Fuel Tank Capacity23 Litres
Gear SelectionL/H/N/R/P
GearboxAutomatic Gears
Ground Clearance295mm
Max Power86HP (OFF ROAD)
Max Torque77.7 NM
Overall Height1290 mm
Overall Length2330 mm
Overall Width1200 mm
Rear Brakes210mm Dual Hydraulic Disc
Rear DifferentialElectric Lock
Rear Rack (Max Loading)50 kg
Rear Shock AbsorbersEVO Hydraulic 242mm Travel
Rear SuspensionIndependant Double A Arm
Rear Tyre SizeAT26 x 10-14
Rear Wheel Size14"
Start TypeElectric Start
Tow HitchYes
Transmission TypeV-belt CVT Automatic
Tyre BrandMaxxis
Unbraked Towing Capacity894 kg
Warranty5 Year Manufacturer Limited Warranty
Wheel Size14 Inch
Wheel TypeAluminium
Wheelbase1445 mm
WinchYes

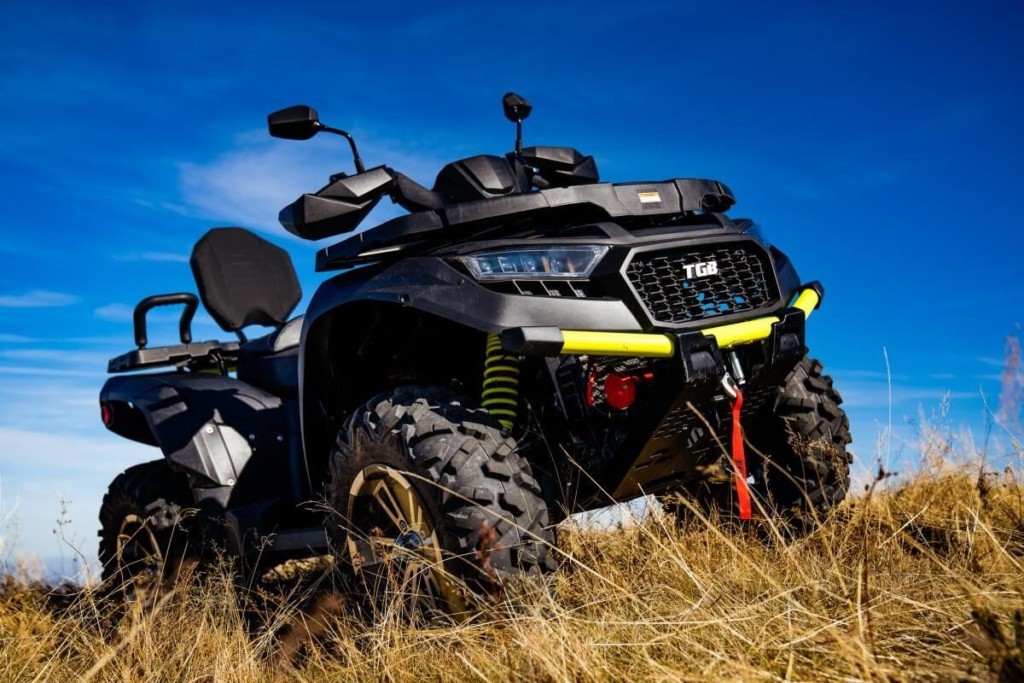

TGB Blade Gallery
